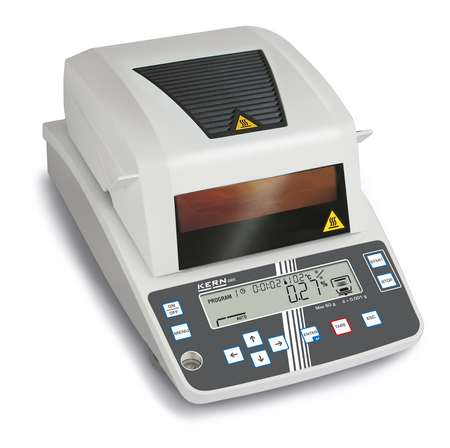

MOISTURE ANALYZER
Moisture analyzer with high-quality single-cell weighing system for outstanding stability, reliability and response speed
Sample type
Raw materials and finished products in feed and agriculture
Analysis time
10 min – 20 min
Parameters
Moisture
Principle
Thermogravimetric analysis

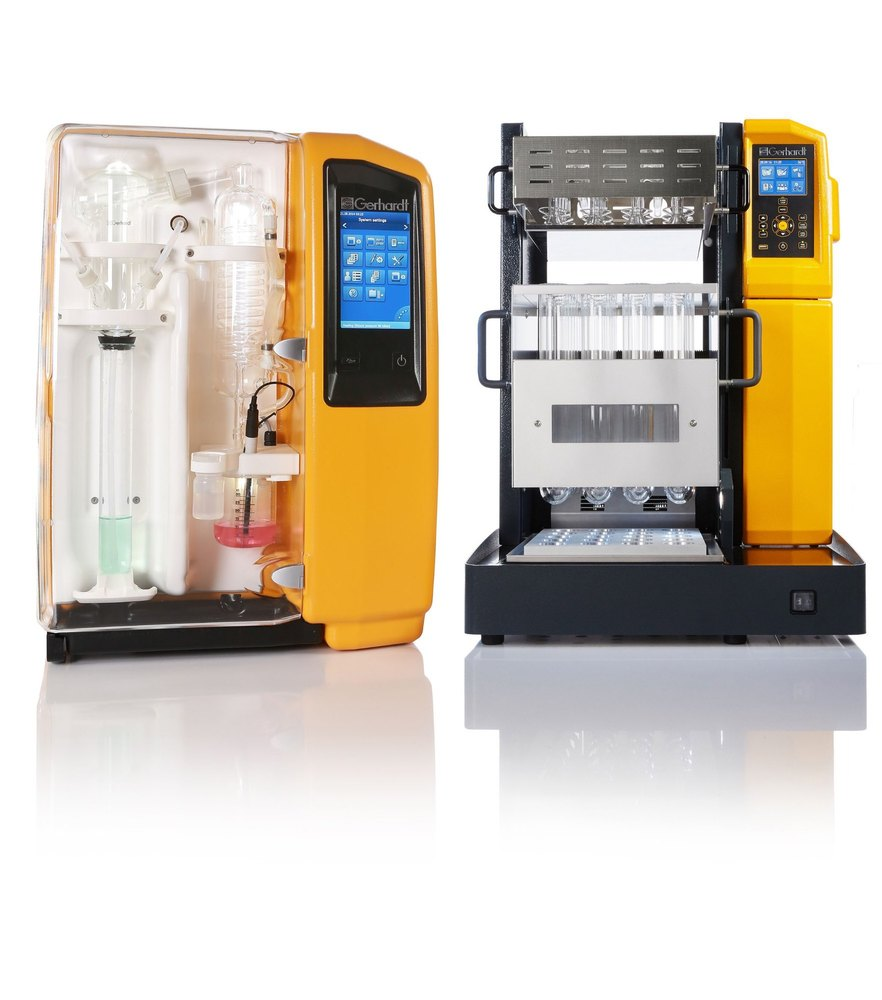

AUTOMATED KJELDAHL SYSTEM
Discover precision and reliability with the Gerhardt kjeldahl Apparatus – the ultimate solution for accurate nitrogen analysis in laboratories
Accurate results with fast turnaround time and easy data handling. safe, easy to operate and simple to run with minimal operator time and reduced risk of error.
Sample type
Raw materials and finished products in feed and agriculture
Analysis time
45min – 1 hr.
Parameters
Nitrogen, protein, ammonia
Principle
Technology – Kjeldahl and other nitrogen based chemical analysis

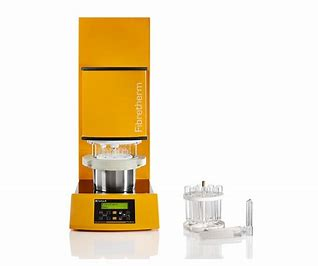

FIBER ANALYZER
FIBRETHERM: Efficient analysis of up to 12 samples in simultaneously
FIBRETHERM automates the digestion and filtration processes for fibre analysis of feed. The device automatically controls and monitors all boiling, washing and filtration processes in a closed circuit without the need for a fume cupboard. FibreBag technology optimises sample digestion and speeds up the washing and filtration processes. All detergents are automatically fed and dosed via calibrated pumps. The determination of the NDF value after addition of the α-amylase can be carried out during operation without interrupting the process.
Sample type
Feed, feed ingredients, forage, pet food, grain, cereal and oil seeds
Parameters
Crude Fiber (CF), Neutral Detergent Fiber (NDF), Acid Detergent Fiber (ADF) and Acid Detergent Lignin (ADL)
Principle
The FIBRETHERM method is based on the FibreBag technology developed by C. Gerhardt. This innovative filtration technology avoids common problems in the classic filtration method using frits and filter beds, it simplifies handling and digestion of the samples and ensures better and more reliable results.

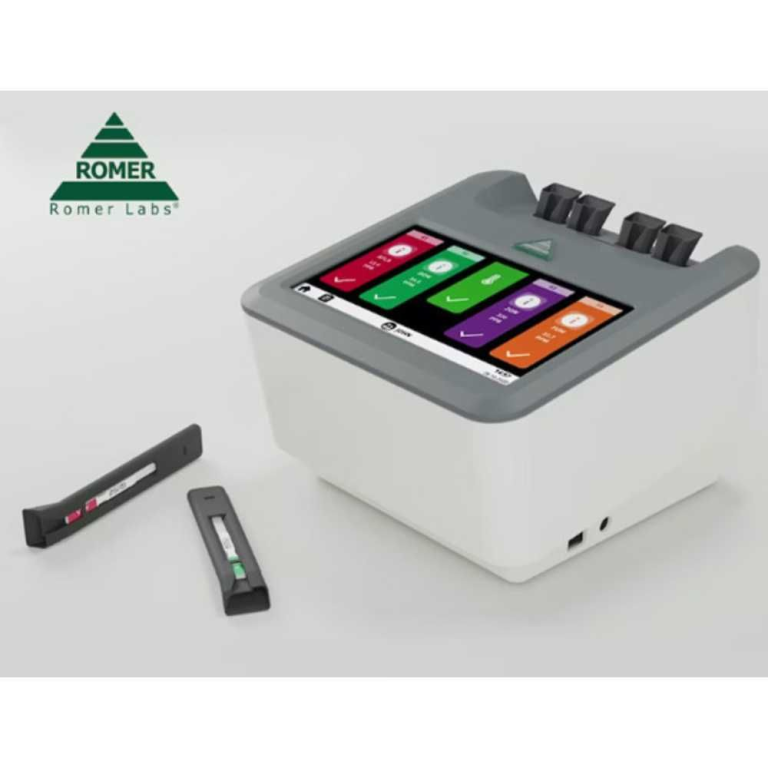

Mycotoxin Testing Solutions AgraVisionTM Pro Reader
The AgraStrip® system enables the rapid and simple on-site quantification of mycotoxins in a variety of agricultural commodities. Both extraction and assay have been streamlined, reducing steps to a bare minimum while setting new standards in accuracy and usability.
Sample type
Raw materials and finished products in feed and agriculture
Parameters
Mycotoxins ( afla, ochra, Don, fumonisin, Zeara)
Analysis time
Few Minutes
Principle
Lateral Flow Immunoassay

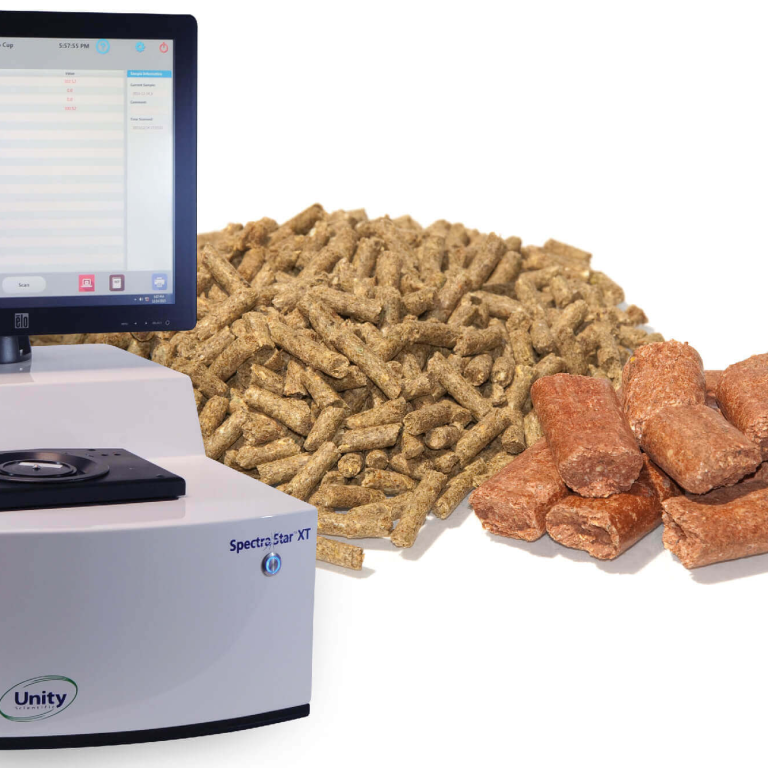

SpectraStar™ XT-R NIR Feed, & Forage Analyzer
Unmatched precision for analyzing feed and forage. Ensure the quality of incoming raw materials and feed ingredients, optimize production processes, minimize variability, and guarantee the consistency of your final product quality.”
Sample type
compound feed, feed ingredients and forages.
Parameters
Moisture, fat, protein, crude fiber, ASH, starch, NDF, NCGD, ADF, Ca, P and Amino Acid.
Ready to use Calibrations
The SpectraStar XT-R has many ready-to-use calibrations available for common applications and constituents. Calibrations are continuously updated for quick implementation and to ensure accurate results across broad sample ranges. For processed foods, snack foods, dairy products, feed and feed ingredients, forages, and animal meals, Unity calibrations provide accurate and reliable results for your specific products and applications.
Analysis time
About 1 MIN
Principle
NIR

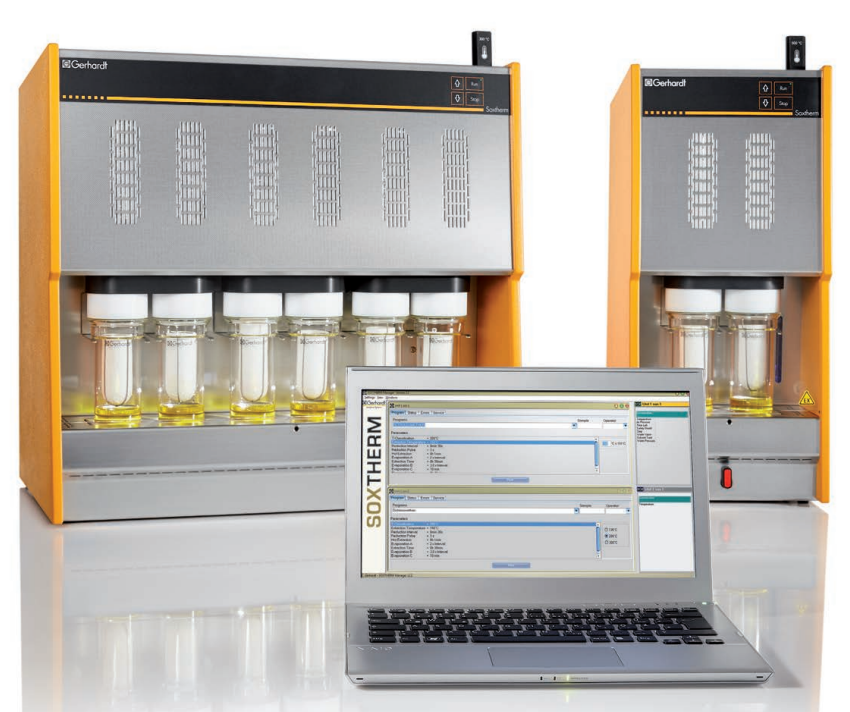

FAT EXTRACTOR
- Gerhardt‘s innovative SOXTHERM rapid extraction system is the highest performed of all laboratory extraction systems available on the market. It is fast, very versatile, can be upgraded easily at any time and provides the best analysis results reliably and consistently. With SOXTHERM you can process up to 24 different samples simultaneously. The device runs fully automatically and can be operated without supervision with confidence. Just insert the extraction beaker and let it run: The time your presence is required is reduced to a minimum. The control software monitors and logs all processing and device data. Your advantage: The extraction processes in your laboratory are transparent, documented and traceable at all times.
Sample type
All type of samples FOOD AND FEED.
Parameters
Crude fat, total fat and extractable matter
Analysis time
60 min – 90 min
Principle
Randall improved Soxhlet
